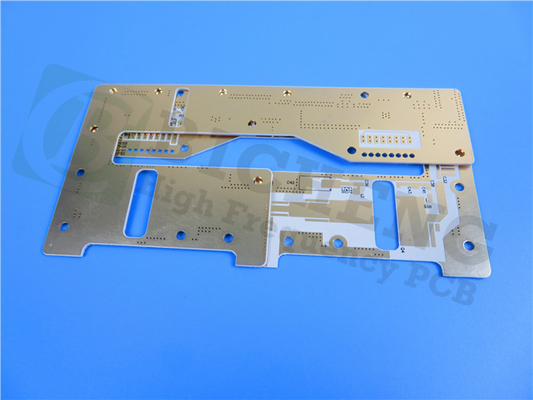

RF-60A PCB 31mil double layer 1oz copper with Immersion Gold

RF-60A PCB 31mil double layer 1oz copper with Immersion Gold

  • RF-60A PCB 31mil double layer 1oz copper with Immersion Gold
  • RF-60A PCB 31mil double layer 1oz copper with Immersion Gold
  • RF-60A PCB 31mil double layer 1oz copper with Immersion Gold
RF-60A PCB 31mil double layer 1oz copper with Immersion Gold
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-254-V3.91
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD9.99-99.99
Packaging Details: Vacuum
Delivery Time: 7 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Board Material: Polyimide 25µm Shengyi 60℃ Board Thickness: 0.10mm
Surface Cu Thickness: 35 µm Surface Finish: Immersion Gold
Coverlay Colour: Yellow Color Of Silkscreen: White
Function: 100% Pass Electrical Test

Enter the RF-60A PCB Material, an organic ceramic fiberglass reinforced laminate that stands on the precipice of revolutionizing the high-frequency electronic design landscape. With its impressive array of features, unwavering construction, and a versatile range of applications, the RF-60A PCB Material is poised to redefine industry standards.


Unparalleled Performance:

Embedded within the core of the RF-60A PCB Material lies an extraordinary tapestry of dielectric properties. Boasting a dielectric constant of 6.15 at 10 GHz, it ensures unwavering and predictable electrical characteristics across an extensive frequency range. The meager dissipation factor of 0.0028 at 10 GHz minimizes signal loss to infinitesimal levels, guaranteeing unrivaled signal integrity even amidst the most taxing circumstances.


Stability Amidst the Elements:

A hallmark feature of the RF-60A PCB Material is its remarkable resistance to moisture absorption. With an astonishingly low moisture absorption rate of a mere 0.02%, it remains steadfastly impervious to the deleterious effects of humidity and unpredictable environmental conditions. This steadfastness engenders consistent performance and thwarts potential maladies stemming from moisture-induced complications.


Reliability in the Face of Thermal Challenges:

The RF-60A PCB Material tackles the formidable challenges of thermal expansion disparity with finesse. By meticulously balancing its coefficient of thermal expansion (CTE) values, it deftly mitigates thermal stress. With x and y CTE values of 9 ppm/°C and 8 ppm/°C, respectively, and a z CTE value of 69 ppm/°C, the RF-60A PCB Material fortifies its resilience against temperature fluctuations, preserving its structural integrity and ensuring lasting dependability.


Parameter Value
Board dimensions 157mm x 109mm
Number of types 8
Tolerance +/- 0.15mm
Minimum Trace/Space 5/6 mils
Minimum Hole Size 0.35mm
Blind vias No
Finished thickness 0.9mm
Finished Cu weight 1oz (1.4 mils) outer layers
Via plating thickness 25μm
Surface finish Immersion Gold
Top Silkscreen White
Bottom Silkscreen No
Top Solder Mask Green
Bottom Solder Mask No


Robust Construction:

The RF-60A PCB Material boasts an unwavering construction that begets longevity and steadfast performance. Its remarkable flexural strength empowers it to endure the rigors of bending and mechanical stress during assembly and operation. Additionally, the presence of exceptional interlaminar bonds fosters reliable signal transmission while minimizing the risk of signal degradation, thereby augmenting the overall reliability and lifespan of the PCB.


A Multitude of Applications:

The versatility of the RF-60A PCB Material renders it an ideal candidate for a myriad of high-frequency applications. From power amplifiers and filters to couplers and antennas, this material empowers engineers to transcend the confines of conventional electronic design. Its stability, performance, and unwavering reliability make it the go-to choice for industries that demand precision and efficiency as their guiding principles.


  • Power Amplifiers
  • Filters & Couplers
  • Passive Components
  • Antennas

Advantages of RF-60A PCB Material:

  • Superior High-Frequency Performance: The RF-60A PCB Material exhibits excellent dielectric properties, with a low dielectric constant and dissipation factor, ensuring reliable and predictable electrical characteristics across a wide frequency range. This translates to superior high-frequency performance and signal integrity.
  • Moisture Resistance: With its exceptionally low moisture absorption rate, the RF-60A PCB Material remains dimensionally stable even in humid environments. This resistance to moisture absorption mitigates the risk of performance degradation and potential damage caused by moisture-related issues.
  • Thermal Reliability: The carefully balanced coefficient of thermal expansion (CTE) values of the RF-60A PCB Material minimize thermal stress, ensuring structural integrity and reliable performance under varying temperature conditions. It reduces the risk of thermal expansion mismatch and associated reliability concerns.
  • Robust Construction: The RF-60A PCB Material boasts a robust construction, including high flexural strength and exceptional interlaminar bonding. This construction allows it to withstand bending, mechanical stress during assembly, and operation, enhancing overall reliability and lifespan.
  • Versatile Applications: The RF-60A PCB Material caters to a wide range of high-frequency applications. From power amplifiers and filters to couplers and antennas, it offers versatility and empowers engineers to explore innovative electronic designs.
  • Compliance and Quality: The RF-60A PCB Material meets stringent industry standards, including IPC-Class-2 compliance, ensuring consistent performance and reliability. It is also ROHS and WEEE compliant, demonstrating its adherence to environmental regulations and responsible manufacturing practices.

Disadvantages of RF-60A PCB Material:

  • Cost: High-performance materials often come at a higher cost compared to standard PCB materials. The RF-60A PCB Material may have a higher price point, making it less accessible for budget-constrained projects.
  • Limited Availability: Depending on the region, the RF-60A PCB Material may have limited availability compared to more widely used materials. This could potentially lead to longer lead times or challenges in sourcing the material.
  • Manufacturing Complexity: The unique properties of the RF-60A PCB Material may require specialized manufacturing processes and techniques. This can increase the complexity of PCB fabrication and assembly, potentially requiring additional expertise and equipment.
  • Brittle Nature: While the RF-60A PCB Material offers robust construction, its ceramic and fiberglass composition can make it relatively brittle compared to other materials. Care must be taken during handling and assembly to avoid mechanical stress and potential damage.
  • Design Considerations: The specific characteristics of the RF-60A PCB Material, such as its dielectric constant and thermal properties, may require careful consideration during the design phase. Some design adjustments may be necessary to optimize performance and mitigate potential issues.


It's important to note that the advantages and disadvantages mentioned above are general considerations for high-frequency PCB materials, and the specific advantages and disadvantages of the RF-60A PCB Material may vary depending on the application and project requirements.


Exemplary Quality and Compliance:

The RF-60A PCB Material adheres to the most exacting quality standards. Compliant with the rigors of IPC-Class-2, it stands resolute in the face of stringent industry requirements, ensuring consistent performance and unwavering reliability. Moreover, it proudly bears the mantle of being both ROHS and WEEE compliant, attesting to its environmentally friendly composition and conscientious manufacturing practices.



The RF-60A PCB Material represents a seismic shift in the high-frequency application landscape. Its unparalleled performance, steadfast stability in the face of challenging environments, and robust construction make it the unequivocal choice for engineers and designers seeking to realize unparalleled signal integrity and unwavering reliability. With its versatile range of applications, the RF-60A PCB Material empowers industries to embark on a journey of innovation, delivering cutting-edge electronic solutions that surmount all obstacles. Embrace the power of the RF-60A PCB Material and unlock the full potential of your high-frequency designs.


The RF-60A PCB Material is readily available to discerning customers worldwide, transcending geographical boundaries to deliver its manifold benefits to electronic design and manufacturing companies across the globe. For all technical inquiries and questions, Sally Mao and her dedicated team at stand poised to provide comprehensive support and expert guidance, ensuring a seamless and rewarding experience.
