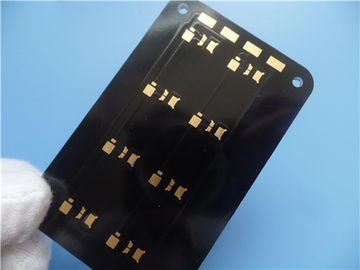

Aluminum PCB With 3W / MK thermal conductivity
Product Details:
Place of Origin: China
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0063-V6.3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD40~50
Packaging Details: Vacuum
Delivery Time: 5-6 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Thermal Conductivity: 3W / MK Dielectric Material, MCPCB Final Foil External: 1 Oz
Final Height Of PCB: 1.6mm ±0.16 Surface Finish: Electroless Nickel Over Immersion Gold (ENIG)
Solder Mask Color: Black Colour Of Component Legend: No Silkscreen
TEST: 100% Electrical Test Prior Shipment

Product profile



1.1 General description



This is a type of aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 3 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 25 boards are packed for shipment.



1.2 Features and benifits



A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

     prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

     materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. Thermal stress test, reliability test, insulation resistance test and ionic contamination

      test
H. Eligible products rate of first production: >95%
I.  PCB manufacturing strictly as per required specifications.
J. High technology
K. Focus on low to medium volume production
L. Small quantity order is accepted



1.3 Application



Home Lighting, Light conversion system, Solid relay, Wall lamp aluminum PCB



1.4 Parameter and data sheet

PCB SIZE 80 x 50mm=1PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
3W/MK dielectric material 100um
Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space: 11mil/11.5mil
Minimum / Maximum Holes: 8.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 3W / MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish

Electroless nickel over Immersion Gold (ENIG)

( 1 µ" over 100 µ" nickel)

Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Black
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen
Colour of Component Legend no silkscreen
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
