Aluminum PCB With HASL Single Sided Metal Core PCB
  • name
  • name
  • name
  • name
  • name
  • name

Aluminum PCB With HASL Single Sided Metal Core PCB

MOQ: 1
Price: USD40~50
Standard Packaging: Vacuum
Delivery Period: 5-6 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0059-V5.9
Thermal Conductivity:
1W/MK Dielectric Material, MCPCB
Final Height Of PCB:
1.6mm ±0.16
Final Foil External:
1 Oz
Surface Finish:
Hot Air Soldering
Solder Mask Color:
Black
Colour Of Component Legend:
White
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD40~50
Packaging Details:
Vacuum
Delivery Time:
5-6 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile



1.1 General description



This is a type of Aluminum PCB for the application of rectifier bridge. It's a single layer

MCPCB board at 1.6 mm thick with 2W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 25 boards are packed separately.



1.2 Features and benifits



A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

    prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

    materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. Right manufacturing instruction (MI),
H. Comprehensive equipment management and maintenance and process control,
I. Strict WIP inspection and monitoring as well as working instruction,
J. No MOQ, low cost for prototypes and samples.
K. 1-10 pieces are offered for sale.
L. International approvals

1.3 Application



Power amplifier, Motor driver, Power supply device, Fluorescent lamp

1.4 Parameter and data sheet

PCB SIZE 95 x 64mm=1PCS
BOARD TYPE Aluminum PCB, IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material
Aluminum 5052
TECHNOLOGY
Minimum Trace and Space: 40 mil /- mil
Minimum / Maximum Holes: 2.0 / 4.0 mm
Number of Different Holes: 2
Number of Drill Holes: 14
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot Air Soldering
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Black
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



The Variety of Aluminum PCBs

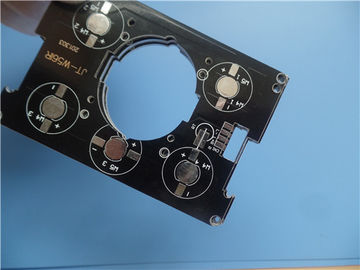

Aluminum PCB With HASL Single Sided Metal Core PCB 0

PCB board washing

Aluminum PCB With HASL Single Sided Metal Core PCB 1
