Aluminum PCB Double Sided 0.6mm Thick Plated Trhough Hole (PTH)

Products

Aluminum PCB Double Sided 0.6mm Thick Plated Trhough Hole (PTH)

MOQ:	1
Price:	USD40~50
Standard Packaging:	Vacuum
Delivery Period:	6-7 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0055-V5.5

Thermal Conductivity:

1W/MK Dielectric Material, MCPCB

Final Height Of PCB:

0.6mm ±0.1

Final Foil External:

Final Foil Internal:

Surface Finish:

Hot Air Soldering Leveling(HASL),lead Free, Sn>=2.54µm

Solder Mask Color:

Black

Colour Of Component Legend:

White

TEST:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD40~50

Packaging Details:

Vacuum

Delivery Time:

6-7 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Product profile

1.1 General description

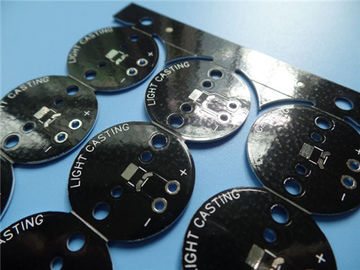

This is a type of double sided aluminum PCB for the application of Led Lighting. It's at

0.6 mm thick with 1W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder

mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied

Gerber data. Each 25 panels are packed separately.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. UL, ISO certified PCB manufacturing factory.
H. Delivery on time. Keeping 98% on-time-delivery rate.
I. DDU Door to door shipment with competitive shipping cost,
J. Professional and experienced engineers
K. Competitive price
L. On-time service

1.3 Application

Balanced amplifier, Communication electronic equipment, Power controller, Industrial and

mining lamps

1.4 Parameter and data sheet

PCB SIZE	85 x 91mm=9PCS
BOARD TYPE	MCPCB
Number of Layers	Double sided PCB, Metal core PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)+PLATE
	1W/MK dielectric material
	Aluminum 1060
	1W/MK dielectric material
	copper ------- 35um(1oz)+PLATE
TECHNOLOGY
Minimum Trace and Space:	13mil/14mil
Minimum / Maximum Holes:	1.5/3.3mm
Number of Different Holes:	4
Number of Drill Holes:	9
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	1oz
Final height of PCB:	0.6mm ±0.1
PLATING AND COATING
Surface Finish	Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To:	Top and Bottom. 12micon Minimum.
Solder Mask Color:	Black
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	via tented.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Variety of PCB's

Aluminum PCB Double Sided 0.6mm Thick Plated Trhough Hole (PTH) 0

PCB drill equipement

Aluminum PCB Double Sided 0.6mm Thick Plated Trhough Hole (PTH) 1
