Single Sided Aluminum PCB 2W / MK HASL LF Applied In LED Lighting.

Products

Single Sided Aluminum PCB 2W / MK HASL LF Applied In LED Lighting.

MOQ:	1
Price:	USD40~50
Standard Packaging:	Vacuum
Delivery Period:	5-6 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0050-V5.0

Glass Epoxy:

2W/MK Dielectric Material, Aluminum Based PCB

Final Height Of PCB:

1.6mm ±0.16

Final Foil External:

Surface Finish:

HASL, Lead Free, Sn>=2.54µm

Solder Mask Color:

White.

Colour Of Component Legend:

Black

TEST:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD40~50

Packaging Details:

Vacuum

Delivery Time:

5-6 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Product profile

1.1 General description

This is a type of Aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 2W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. Strict WIP inspection and monitoring as well as working instruction,
H. Whole fabrication process are totally controlled.
I. Meeting your printed circuit board needs from PCB prototyping to mass volume

production.
J. UL recognized and RoHS Directive-compliant
K. RoHS materials
L. UL conformed

1.3 Application

Input-output amplifier, DC/AC converter, Automotive ignitor, Street lamp

1.4 Parameter and data sheet

PCB SIZE	160 x 83mm=8PCS
BOARD TYPE
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	80um 2W/MK dielectric material
	Metal base (Aluminum 5052)
TECHNOLOGY
Minimum Trace and Space:	10mil/12mil
Minimum / Maximum Holes:	0.4/2.5mm
Number of Different Holes:	5
Number of Drill Holes:	454
Number of Milled Slots:	22
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Glass Epoxy:	2W/MK dielectric material, Aluminum based PCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	HASL, Lead Free, Sn>=2.54µm
Solder Mask Apply To:	Top ,12micon Minimum.
Solder Mask Color:	White.
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	Black
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

The Variety of Aluminum PCBs

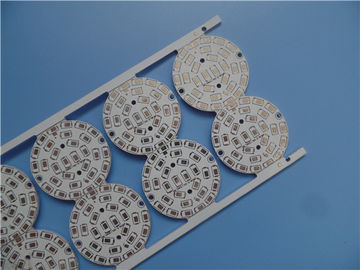

Single Sided Aluminum PCB 2W / MK HASL LF Applied In LED Lighting. 0

PCB Grinding Machine

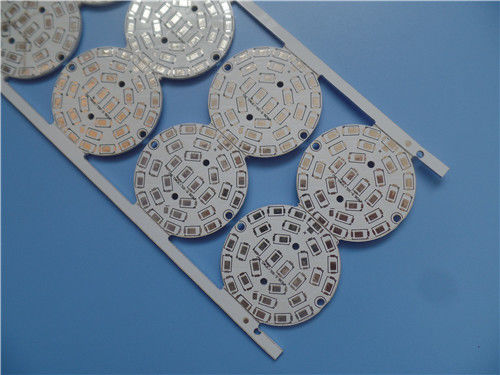

Single Sided Aluminum PCB 2W / MK HASL LF Applied In LED Lighting. 1
