Heavy Copper PCB Built On Aluminum Base With 10 Oz Copper Weight
  • name
  • name
  • name
  • name
  • name
  • name

Heavy Copper PCB Built On Aluminum Base With 10 Oz Copper Weight

MOQ: 1
Price: USD20~30
Standard Packaging: Vaccum
Delivery Period: 5-6 working days
Payment Method: T/T / Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0879-V8.79
Thermal Conductivity:
1W/MK Dielectric Material, MCPCB
Board Thick:
1.2mm ±0.12
Copper Thick:
10 OZ
Surface Finish:
OSP
Solder Mask Color:
No Required
Colour Of Component Legend:
No Required
TEST:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD20~30
Packaging Details:
Vaccum
Delivery Time:
5-6 working days
Payment Terms:
T/T / Paypal
Supply Ability:
45000 pieces per month
Product Description

Product profile





1.1 General description


This is a type of heavy copper PCB built on aluminum substrate with breakdown

voltage 4000 VDC for the application of Large-current application. It's 1.2 mm

thick without silkscreen and solder mask and a coating of OSP on pads. The

base material is from Totking supplying single up PCB. They're fabricated per

IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for

shipment.





1.2 Features and benifits

A. Optimization combination of power circuit and control circuit
B. Better heat dissipation of high heat generated by large current
C. PCB manufacturing on required specifications.
D. 8000 types of PCB per month
E. Quick Lead time: 3-5 days
F. Free-of-charge PCB panelization




1.3 Application

Uninterrupted Power Supply, Desktop Power Supply, Computer Power Supplies, Battery

Power Supply, Inverter Power, Power Supply Components, DVE Power Supply, Electric

vehicle charging (commercial and industrial), AC AC Converter, 2000W Inverter,





1.4 Parameter and data sheet

PCB SIZE 75 x 64mm=1PCS
BOARD TYPE Aluminum PCB, IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 350 um(10 oz)
1W/MK dielectric material
Aluminum 5052 0.8mm
TECHNOLOGY
Minimum Trace and Space: 70 mil / 70 mil
Minimum / Maximum Holes: N/A
Number of Different Holes: N/A
Number of Drill Holes: N/A
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 10 OZ
Final foil internal: 0 oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish OSP
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.





Variety of PCB's

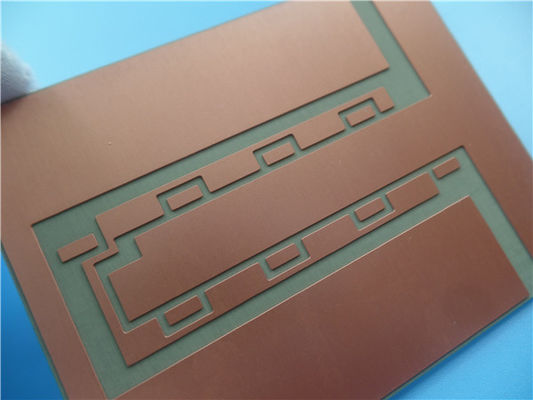

Heavy Copper PCB Built On Aluminum Base With 10 Oz Copper Weight 0

Heavy Copper PCB Built On Aluminum Base With 10 Oz Copper Weight 1
