Why TLX-9 PCB is the Right Choice?

Why TLX-9 PCB is the Right Choice?

MOQ: 1PCS
Price: 0.99USD/PCS
Standard Packaging: Packing
Delivery Period: 2-10 working day
Payment Method: T/T
Supply Capacity: 10000pcs
Detail Information
Place of Origin
China
Brand Name
Rogers
Certification
ISO9001
Model Number
TLX-9
Minimum Order Quantity:
1PCS
Price:
0.99USD/PCS
Packaging Details:
Packing
Delivery Time:
2-10 working day
Payment Terms:
T/T
Supply Ability:
10000pcs
Product Description

I’m excited to share our newly shipped 2-layer TLX-9 PCB with you. It was designed to be reliable, efficient, and perfect for high-frequency applications like antennas, amplifiers, and RF components. Built with Taconic TLX-9 material, this PCB offers low signal loss, excellent thermal stability, and high durability.



Let me explain what makes this PCB so great and how it can help you.



How This PCB Was Made

This PCB was carefully constructed to ensure high performance. Here are some of its key features:

  • Material: TLX-9, which is known for its stable electrical and mechanical properties.
  • Layers: It’s a simple 2-layer design.
  • Size: Each board is 78mm x 39mm, with a thickness of 0.9mm.
  • Copper Weight: 1oz on the outer layers for good conductivity.
  • Trace and Space: Minimum trace width is 4 mils, and the spacing is 7 mils.
  • Surface Finish: Immersion Gold was used for better solderability and corrosion resistance.
  • Testing: Each board was tested 100% electrically before shipping to ensure it works perfectly.

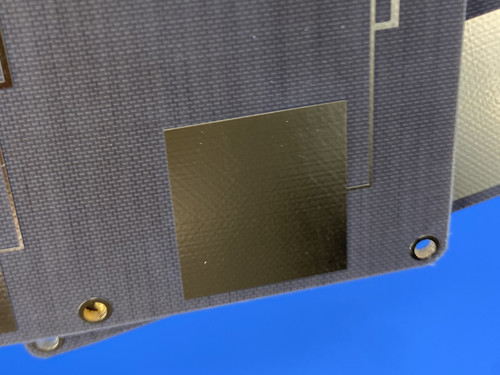

Why TLX-9 PCB is the Right Choice? 0



What’s Inside the PCB

This PCB is simple, but it’s very effective. Here’s what it contains:

  • Pads: 36 in total.
    • 25 Thru-Hole Pads and 11 SMT Pads on the Top Side.
  • Vias: 23 in total, all plated with copper for strength.
  • Nets: 2, keeping the design clean and efficient.







Why TLX-9 Material Was Used

The TLX-9 material makes this PCB special. It’s a composite of PTFE and woven glass, which helps it perform well in high-frequency applications. Its dielectric constant (Dk) is 2.5, which stays stable across a wide range of temperatures and frequencies.

Other benefits of TLX-9 include:

  • Low Signal Loss: The dissipation factor is just 0.0019 at 10GHz.
  • Moisture Resistance: It absorbs less than 0.02% moisture, so it works well in humid environments.
  • Thermal Stability: The material is dimensionally stable and resists warping under heat.
  • Flame Retardancy: It meets the UL-94 V-0 standard, ensuring safety in high-temperature environments.







Where This PCB Can Be Used

This PCB was designed for many high-frequency applications, such as:

  • Low Noise Amplifiers (LNAs): Ideal for reducing noise in RF systems.
  • Antennas: Reliable for large format antennas and communication networks.
  • High-Power Amplifiers: Perfect for handling high power without losing performance.
  • Passive RF Components: Great for filters, couplers, and other components.







Why You Should Choose This PCB

This PCB was built to deliver performance and reliability. The TLX-9 material ensures low loss, excellent moisture resistance, and thermal stability. It’s also compatible with standard manufacturing processes, making it easy to produce and cost-effective.

Every board was tested to meet IPC-Class-2 standards, so you can trust its quality.





Order Today

If you need a PCB that’s reliable, efficient, and built for high-frequency applications, this 2-layer TLX-9 PCB is the perfect choice. It’s available worldwide, so you can get it wherever you are.



Contact us today to learn more or place your order. I’m confident this PCB will help you build something amazing!
