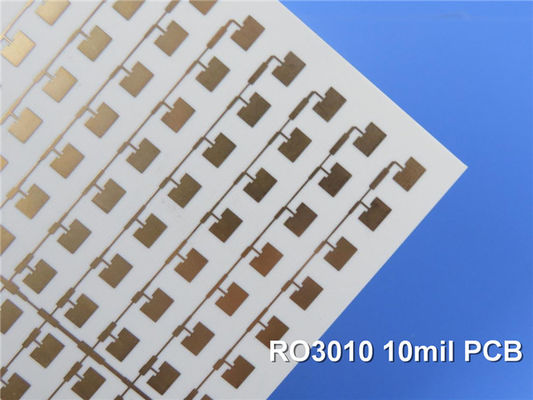

Rogers RO3010 PCBs 2-layer 10mil thick double sides copper with Immersion Silver

Unlocking High-Performance with Rogers RO3010 PCBs

In the fast-paced world of electronics, where miniaturization and cutting-edge performance are paramount, circuit board materials play a crucial role in realizing the full potential of modern devices. One such standout solution is the Rogers RO3010 PCB, a 2-layer rigid circuit board that is revolutionizing a wide range of applications, from automotive radar to satellite communications.

At the heart of the RO3010 PCB is the advanced RO3010 material, a ceramic-filled PTFE composite that offers a remarkable combination of electrical, mechanical, and thermal properties.

Q: What are the key electrical characteristics of the RO3010 material?
A: The RO3010 material boasts impressive electrical performance:

1. Dielectric constant of 10.2 ± 0.30 at 10 GHz
2. Dissipation factor of 0.0022 at 10 GHz
3. These specifications ensure excellent signal integrity and low-loss performance across a broad range of frequencies.

But the material's prowess extends far beyond its electrical characteristics. Its low coefficient of thermal expansion, ranging from 13 ppm/°C in the X-direction to 16 ppm/°C in the Z-direction, ensures a remarkable level of dimensional stability that is essential for circuit miniaturization and reliable interconnections.

Q: How does the RO3010 material perform in terms of thermal management?
A: The RO3010 material excels in thermal management:

1. Thermal conductivity of 0.95 W/mK, enabling efficient heat dissipation
2. High glass transition temperature (Td > 500°C) for resilience in extreme temperatures
3. Operational temperature range of -40°C to +85°C

This thermal stability, coupled with a high glass transition temperature (Td > 500°C), makes the RO3010 an ideal choice for applications that demand resilience in the face of temperature extremes.

Thermal management is another critical aspect where the RO3010 material shines. With a thermal conductivity of 0.95 W/mK, the material effectively dissipates heat, enabling the design of high-power circuits and components that can operate reliably under demanding conditions. This thermal efficiency is further complemented by the material's low moisture absorption of just 0.05%, ensuring consistent performance even in humid environments.

The benefits of the RO3010 material are not limited to its technical prowess; it also offers significant advantages in terms of manufacturing and cost-effectiveness. Its economical pricing and suitability for high-volume production processes make it an attractive choice for manufacturers seeking to balance performance and affordability.

When it comes to the RO3010 PCB design, the 2-layer configuration offers a versatile platform for a wide range of applications. The board's compact dimensions of 60.8mm x 35.4mm, coupled with a finished thickness of just 0.32mm, make it an ideal solution for space-constrained designs.

Q: What are some of the key construction details of the RO3010 PCB?
A: The RO3010 PCB features the following construction details:

1. 2-layer rigid PCB with 35μm copper layers
2. Finished board thickness of 0.32mm
3. 1 oz copper weight on the outer layers
4. Minimum trace/space of 4/6 mils and minimum hole size of 0.2mm

From automotive radar applications and global positioning satellite antennas to cellular telecommunications systems and direct broadcast satellites, the RO3010 PCB is poised to be a game-changer in a wide range of industries. As the demand for high-performance, compact, and cost-effective circuit board solutions continues to grow, the Rogers RO3010 PCB stands out as a testament to the power of innovative material science and engineering.
