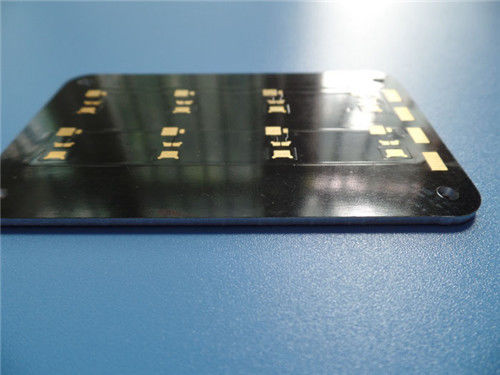

Aluminum plate PCB With 3W / MK thermal conductivity board at 1.6 mm thick

Products

Aluminum plate PCB With 3W / MK thermal conductivity board at 1.6 mm thick

Name: Aluminum plate PCB With 3W / MK thermal conductivity board at 1.6 mm thick
Brand: Bicheng Enterprise Limited
SKU: BIC-0063-V6.3
Price: 40 USD
Availability: InStock
Rating: 4.9 (151 reviews)

MOQ:	1
Price:	USD40~50
Standard Packaging:	Vacuum
Delivery Period:	5-6 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0063-V6.3

Thermal Conductivity:

3W / MK Dielectric Material, MCPCB

Final Foil External:

1 Oz

Final Height Of PCB:

1.6mm ±0.16

Surface Finish:

Electroless Nickel Over Immersion Gold (ENIG)

Solder Mask Color:

Black

Colour Of Component Legend:

No Silkscreen

TEST:

100% Electrical Test Prior Shipment

Minimum Order Quantity:

Price:

USD40~50

Packaging Details:

Vacuum

Delivery Time:

5-6 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Product profile

1.1 General description

This is a type of aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 3 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 25 boards are packed for shipment.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. Thermal stress test, reliability test, insulation resistance test and ionic contamination

test
H. Eligible products rate of first production: >95%
I. PCB manufacturing strictly as per required specifications.
J. High technology
K. Focus on low to medium volume production
L. Small quantity order is accepted

1.3 Application

Home Lighting,
Light conversion system,
Solid relay,
Wall lamp aluminum PCB

1.4 Parameter and data sheet

PCB SIZE	80 x 50mm=1PCS
BOARD TYPE	IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	3W/MK dielectric material 100um
	Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space:	11mil/11.5mil
Minimum / Maximum Holes:	8.5mm
Number of Different Holes:	1
Number of Drill Holes:	4
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	3W / MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Electroless nickel over Immersion Gold (ENIG) ( 1 µ" over 100 µ" nickel)
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	Black
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	no silkscreen
Colour of Component Legend	no silkscreen
Manufacturer Name or Logo:	as per requirement
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
