RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application

RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application

  • RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application
  • RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application
RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application
Product Details:
Place of Origin: China
Brand Name: Bicheng Enterprise
Certification: UL
Model Number: BIC-0263-V2.63
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2.99-6.99 PER PIECE
Packaging Details: Vacuum
Delivery Time: 5-6 working days
Payment Terms: T/T, Western Union
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: 1 Glass Epoxy: Polyimide (PI) 25um
Final Foil: 1 Oz Final Height Of PCB: 0.20 Mm ±10%
Surface Finish: Immersion Gold Solder Mask Color: Yellow
Colour Of Component Legend: White Test: 100% Electrical Test Prior Shipment

In the world of advanced circuit materials, Rogers Corporation has emerged as a leading innovator, consistently pushing the boundaries of what is possible. One of their remarkable offerings is the RO3006 laminates, a revolutionary solution designed to deliver exceptional electrical and mechanical stability. Let's delve into the features, benefits, and applications of this remarkable product.



The RO3006 laminates are ceramic-filled PTFE composites, meticulously engineered to provide a stable dielectric constant (Dk) over a wide temperature range. Unlike traditional PTFE glass materials that experience a step change in Dk near room temperature, the RO3006 laminates maintain a consistent Dk of 6.15 +/- 0.15 at 10 GHz/23°C. This remarkable stability ensures reliable and predictable performance, even in demanding high-frequency applications.



One of the standout features of RO3006 laminates is their impressively low dissipation factor of 0.002 at 10 GHz/23°C. This characteristic translates into minimal signal loss and efficient power transmission, making them ideal for high-frequency designs where signal integrity is critical.

Thermal stability is another area where the RO3006 laminates shine. With a Td> 500°C, these laminates can withstand high-temperature environments without compromising performance. Additionally, their thermal conductivity of 0.79 W/mK enables efficient heat dissipation, ensuring reliable operation even under demanding thermal conditions.



Benefits:

  • Uniform Mechanical Properties: RO3006 laminates ensure consistent mechanical performance across various dielectric constants, making them ideal for multi-layer board designs with different dielectric requirements. They are also compatible with epoxy glass multi-layer board hybrid designs.
  • Low In-Plane Expansion Coefficient: With a coefficient of thermal expansion that matches copper, these laminates provide reliable surface-mounted assemblies and are well-suited for applications sensitive to temperature changes. Additionally, they offer excellent dimensional stability.
  • Efficient Volume Manufacturing: The cost-effective manufacturing process of RO3006 laminates enables economical pricing without compromising quality, making them an attractive option for mass production.



RO3006 Laminates: Redefining Stability and Reliability for High-Performance Application 0

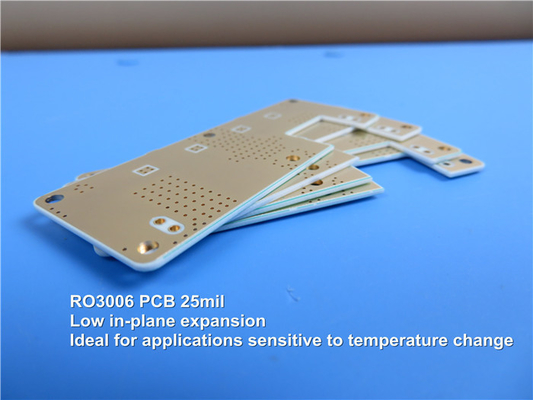

In terms of PCB stackup, a 2-layer rigid PCB configuration is commonly used with RO3006 laminates. This stackup consists of a 35 μm copper layer on each side, sandwiching the 25mil (0.635mm) RO3006 substrate. This configuration strikes a balance between performance and simplicity, making it suitable for a wide range of applications.



The RO3006 laminates have been extensively tested and adhere to the IPC-Class-2 standard, ensuring reliable and consistent performance. They are widely available worldwide, making them accessible to diverse markets and regions.



While the RO3006 laminates offer an impressive array of features and benefits, it is essential to consider their limitations. One such limitation is the limited dielectric constant range. The RO3006 laminates excel within their specified dielectric constant of 6.15 +/- 0.15, but may not be suitable for applications requiring a broader range of dielectric constants.





Shortcomings:

  • Limited Dielectric Constant Range: While RO3006 laminates offer stability within their specified dielectric constant of 6.15 +/- 0.15, they may not be suitable for applications requiring a wider range of dielectric constants.
  • Moderate Thermal Conductivity: Although RO3006 laminates exhibit a thermal conductivity of 0.79 W/mK, there are alternative materials available with higher thermal conductivity for applications demanding even more efficient heat dissipation.



Typical Applications:

  • Automotive radar applications
  • Global positioning satellite antennas
  • Cellular telecommunications systems - power amplifiers and antennas
  • Patch antennas for wireless communications
  • Direct broadcast satellites
  • Datalink on cable systems
  • Remote meter readers
  • Power backplanes



In conclusion, the RO3006 laminates from Rogers Corporation redefine stability and reliability for high-performance applications. With their exceptional electrical and mechanical properties, these laminates provide designers with a versatile and dependable solution. However, it is important to consider the limited dielectric constant range and moderate thermal conductivity when selecting materials for specific project requirements. Embrace the stability and reliability of RO3006 laminates and unlock the full potential of your designs.
