F4B High Frequency Printed Circuit Board 1.6mm F4BM265 3oz PTFE PCB

F4B High Frequency Printed Circuit Board 1.6mm F4BM265 3oz PTFE PCB

MOQ: 1
Price: USD 2.88-6.99 per piece
Standard Packaging: Vacuum
Delivery Period: 4-5 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-XXXX-V1.38
Number Of Layers:
2 Layer
Glass Epoxy:
F4B DK 2.65
Final Height Of PCB:
1.6mm
Final Foil External:
3oz
Surface Finish:
ENIG
Solder Mask Color:
No
Colour Of Component Legend:
No
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.88-6.99 per piece
Packaging Details:
Vacuum
Delivery Time:
4-5 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Hello everybody,

Today we talk about a type of F4B high frequency circuit board.



F4B series high frequency material is mainly PTFE glass fiber cloth and ceramic-filled PTFE glass fiber cloth etc. It is a series of high frequency materials of Chinese brand, which is cheap in price and stable in quality. It's widely applied to radar, navigation, satellite communication, 4G communications, 5G communications and the like.

PCB Specifications
Layer count: Double sided
Base material: F4B DK 2.65
Dimension: 210 x 115mm
Finished thickness 1.6mm ±10%
Finished Copper weight: 3oz
SMOBC: No
Surface finish: Immersion gold



The main specifications of this board is double sided board, substrate is F4B, DK at 2.65, 210mm long by 115mm wide, 1.6mm finished thick, finished copper 3oz, no solder mask no silkscreen, and surface finish is immersion gold.



Let’s see the stack up.

F4B High Frequency Printed Circuit Board 1.6mm F4BM265 3oz PTFE PCB 0



Top layer and bottom layer are 3oz copper finished. F4b dielectric material is in the middle of 2 layers copper, showing dielectric constant at 2.65

F4B High Frequency Printed Circuit Board 1.6mm F4BM265 3oz PTFE PCB 1

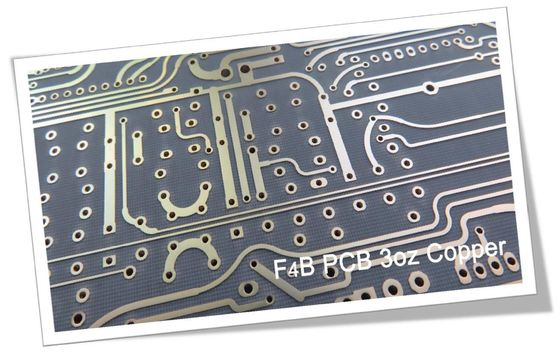

From the photo of this board, the track is thicker than normal boards; surface finish is immersion gold and no solder mask and silkscreen.



PCB Capability
PCB Material: PTFE
Code: F4B series
Dielectric constant: 2.2, 2.55 and 2.65
2.17, 2.45, 2.75 and 3.0
Layer count: 1 Layer, 2 Layer, Multilayer, Hybrid type
Copper weight: 0.5oz, 1oz, 2oz, 3oz
PCB thickness: 0.17mm, 0.25mm, 0.5mm, 0.8mm, 1.0mm,
1.5mm, 2.0mm, 3.0mm, 4.0mm and 5.0mm, etc.
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.




The dielectric constant of F4B material is wide, ranging 2.2 to 3.0 etc. Board thickness ranges 0.17mm to 5.0mm. We can provide you with prototype service, small batches and mass production service.



Should you have any questions, please feel free to contact us.

Thank you for your reading.
