Parameter	Value
Layer Counts	1-32
Substrate Material	RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4, TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
Maximum Size	Flying test: 900600mm, Fixture test 460380mm, No test 1100*600mm
Board Outline Tolerance	±0.0059" (0.15mm)
PCB Thickness	0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)	±8%
Thickness Tolerance(t＜0.8mm)	±10%
Insulation Layer Thickness	0.00295" - 0.1969" (0.075mm--5.00mm)
Minimum Track	0.003" (0.075mm)
Minimum Space	0.003" (0.075mm)
Outer Copper Thickness	35µm--420µm (1oz-12oz)
Inner Copper Thickness	17µm--420µm (0.5oz - 12oz)
Drill Hole(Mechanical)	0.0059" - 0.25" (0.15mm--6.35mm)
Finished Hole(Mechanical)	0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical)	0.00295" (0.075mm)
Registration (Mechanical)	0.00197" (0.05mm)
Aspect Ratio	12:1
Solder Mask Type	LPI
Min Soldermask Bridge	0.00315" (0.08mm)
Min Soldermask Clearance	0.00197" (0.05mm)
Plug via Diameter	0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance	±10%
Surface Finish	HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger

Newly Shipped RF PCB

Rogers PCB Board

Taconic PCB Board

PTFE PCB Board

Flexible Printed Circuit

Multilayer PCB Board

High Temperature PCB

HDI PCB Board

Impedance Controlled PCB

PCB Prototypes

Blog

Arlon PCB Board

Hybrid PCB Board

FR-4 PCB Board

High Frequency PCB

F4B SERIES PCBS

PCB Capabilities

Detail Information

Product Description

Detail Information

Product Description

► More than 18 year manufacturing experience.

► Skilled workers, 3 shifts per day

► Substrate material: Epoxy glass (FR-4), High frequency, Metal core and Flexible material.

► Price advantages on circuit boards

► Multilayer PCB and Hybrid material of Multilayer PCB

► Quick turnaround prototypes

► IATF16949 (2016), ISO14001 (2004),ISO9001 (2015), UL certified

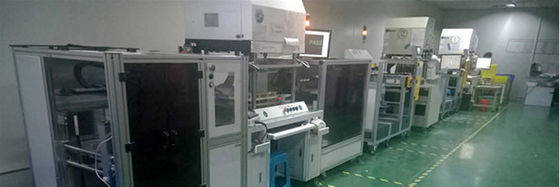

PCB Capabilities 0

Parameter	Value
Layer Counts	1-32
Substrate Material	RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4, TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
Maximum Size	Flying test: 900600mm, Fixture test 460380mm, No test 1100*600mm
Board Outline Tolerance	±0.0059" (0.15mm)
PCB Thickness	0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)	±8%
Thickness Tolerance(t＜0.8mm)	±10%
Insulation Layer Thickness	0.00295" - 0.1969" (0.075mm--5.00mm)
Minimum Track	0.003" (0.075mm)
Minimum Space	0.003" (0.075mm)
Outer Copper Thickness	35µm--420µm (1oz-12oz)
Inner Copper Thickness	17µm--420µm (0.5oz - 12oz)
Drill Hole(Mechanical)	0.0059" - 0.25" (0.15mm--6.35mm)
Finished Hole(Mechanical)	0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical)	0.00295" (0.075mm)
Registration (Mechanical)	0.00197" (0.05mm)
Aspect Ratio	12:1
Solder Mask Type	LPI
Min Soldermask Bridge	0.00315" (0.08mm)
Min Soldermask Clearance	0.00197" (0.05mm)
Plug via Diameter	0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance	±10%
Surface Finish	HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
