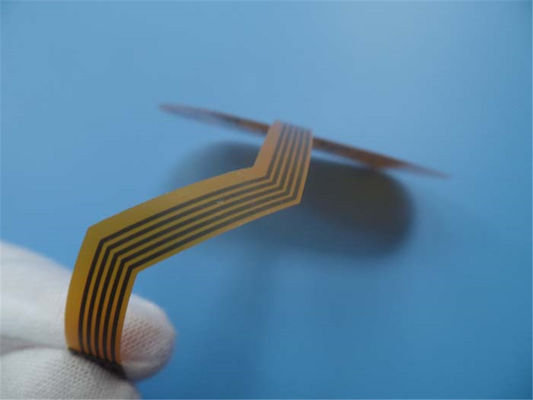

Polyimide FPC Keypad Connector Flexible2 layer FPC at 0.2mm thick
  • name
  • name
  • name
  • name
  • name

Polyimide FPC Keypad Connector Flexible2 layer FPC at 0.2mm thick

MOQ: 1
Price: USD40~50 per piece
Standard Packaging: VACUUM
Delivery Period: 6-7 working days
Payment Method: T/T,Paypal
Supply Capacity: 50000 PIECE PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Enterprise Limited
Certification
UL
Model Number
BIC-0409-V4.09
Size Of Flexible PCB:
120.18 X 30.28mm
Number Of Layers:
2
Board Material:
Polyimide 25µm
Board Thickness:
0.20mm
Surface Cu Thickness:
35 µm
Coverlay Colour:
Yellow
Color Of Silkscreen:
White
Function:
100% Pass Electrical Test
Minimum Order Quantity:
1
Price:
USD40~50 per piece
Packaging Details:
VACUUM
Delivery Time:
6-7 working days
Payment Terms:
T/T,Paypal
Supply Ability:
50000 PIECE PER MONTH
Product Description

Product profile



1.1 General description



This is a type of flexible printed circuit for the application of keypad. It’s a 2 layer FPC at

0.2mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using

supplied Gerber data. Polyimide stiffner is applied on the inserting part.



1.2 Features and benifits



A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. Small quantity, prototypes and production.
L. DDU Door to door shipment with competitive shipping cost.



1.3 Application



  • Capacitive touch screen/panel,
  • Industrial control interphone,
  • Consumer electrostatic
  • Bracelet soft board,



1.4 Parameter and data sheet



Parameter & Data Sheet
Size of Flexible PCB 120.18 X 30.28mm
Number of Layers 2
Board Type Flexible PCB
Board Thickness 0.20mm
Board Material Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2
