Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled

Products

Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled

Name: Flexible PCB | Impedance controlled Flex PCB | Polyimide Flex PCB built on polyimide 76 micron substrate with 90 ohm impedance controlled
Brand: Bicheng Enterprise Limited
SKU: BIC-0489-V4.89
Price: 70 USD
Availability: InStock
Rating: 4.5 (166 reviews)

MOQ:	1
Price:	USD70~80
Standard Packaging:	Vacuum
Delivery Period:	7-8 working days
Payment Method:	T/T, Paypal
Supply Capacity:	45000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Bicheng Enterprise Limited

Certification

Model Number

BIC-0489-V4.89

Board Material:

Polyimide Substrate 0.076mm

Board Thickness:

0.2mm +/-10%

Surface Cu Thickness:

35 Um (1oz)

Surface Finish:

Immersion Gold

Coverlay Colour:

Yellow

Color Of Silkscreen:

N/A

Function:

100% Pass Electrical Test

Minimum Order Quantity:

Price:

USD70~80

Packaging Details:

Vacuum

Delivery Time:

7-8 working days

Payment Terms:

T/T, Paypal

Supply Ability:

45000 pieces per month

Product Description

Product profile

1.1 General description

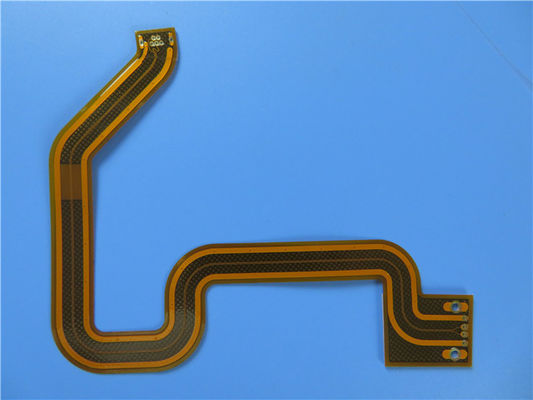

This is a type of flexible PCB built on polyimide 76 micron substrate with 90 ohm

impedance controlled on 0.15mm/0.3mm track and gap for the application of

Wireless Broadband. It's standard 0.20 mm thick with yellow solder mask (coverlay)

on both sides and immersion gold are on pads. FR-4 as stiffener is on the head and

tail. The base material is used from Shengyi, entire board supplying 1 up flex per

panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each

25 pieces are packed for shipment.

1.2 Features and benefits

A. Excellent flexibility;

B. Reducing the volume;

C. Weight reduction;

D. Consistency of assembly;

E. Increased reliability;

F. Powerful PCB capabilities support your research and development,

sales and marketing;

G. Delivery on time with higher than 98% on-time-delivery rate;

H. Team with passion, discipline, responsibility and honesty;

I. No minimum order quantity. 1 piece is available;

1.3 Application

Flexible flat cable,
Industrial control temperature controller soft board,
Medical equipment controller,
Automobile GPS navigation flex board,
Tablet keypad flex board,
Display backlight

1.4 Parameter and data sheet

PCB Size:	116 X 108mm = 1 PCS
Number of Layers	2 layers
Board Type	Flexbile PCB
Board Thickness	0.2mm +/-10%
Stackup	TOP FR-4 Steffener 0.8mm
	PI coverlay 0.025mm
	Copper top 0.035mm finish
	Polyimide substrate 0.076mm
	Copper top 0.035mm finish
	PI coverlay 0.025mm
Board Material Supplier	Shengyi
Tg Value of Board Material	60℃

PTH Cu thickness	20 um
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 um (1oz)

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 um
Stiffener	FR-4 0.8mm

Type of Silkscreen Ink	N/A
Supplier of Silkscreen	N/A
Color of Silkscreen	N/A
Number of Silkscreen	N/A

Minimum via (mm)	0.3
Minimum Trace (mil)	5.90
Minimum Gap(mil)	11.8

Surface Finish	Immersion Gold
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25℃±125℃, 1000 cycles.
Thermal Stress	Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2
Type of artwork to be supplied	email file, Gerber RS-274-X, PCBDOC etc
Service area	Worldwide, Globally.
