Taconic TLF-35 High Frequency Printed Circuit Board TLF-35 RF PCB
  • name
  • name
  • name

Taconic TLF-35 High Frequency Printed Circuit Board TLF-35 RF PCB

MOQ: 1
Price: USD 2.88-6.99 per piece
Standard Packaging: Vacuum
Delivery Period: 4-5 working days
Payment Method: T/T, Paypal
Supply Capacity: 45000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bicheng Technologies Limited
Certification
UL
Model Number
BIC-XXXX-V1.31
Number Of Layers:
1 Layer, 2 Layer, 4 Layer.
Glass Epoxy:
TLF-35
Final Height Of PCB:
0.8mm, 1.6mm
Final Foil External:
0.5oz, 1oz, 2oz
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin Etc.
Solder Mask Color:
Green, White, Black Etc.
Colour Of Component Legend:
Green, White, Black Etc.
Test:
100% Electrical Test Prior Shipment
Minimum Order Quantity:
1
Price:
USD 2.88-6.99 per piece
Packaging Details:
Vacuum
Delivery Time:
4-5 working days
Payment Terms:
T/T, Paypal
Supply Ability:
45000 pieces per month
Product Description

Hello everyone,

Today, we talk about TLF-35 high frequency PCB.



Taconic TLF-35 is an organic-ceramic laminates which is based on woven glass reinforcement. It is a result of both ceramic fill technology and coated PTFE fiberglass.

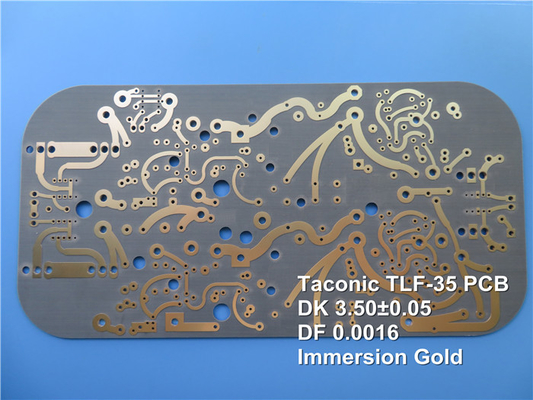

Taconic TLF-35 High Frequency Printed Circuit Board TLF-35 RF PCB 0



We benefit from its following advantages:

1. Improved phase intermodulation distortion (PIMD) with DK3.5

TLF-35 is designed to obtain improved PIMD performances on size effective PCBs for antenna application. The dielectric constant of TLF-35 is 3.5 which is similar with PIMD required levels.



2. Improved PTH quality

It shows better PTH quality which results in more stable hole wall and insulation resistance even for the smaller drilled holes.



3. Stable at high frequency

TLF-35 is designed to offer superior high frequency performance.



4. Low moisture absorption

Its ultra-low moisture absorption rate and low dissipation factor minimize phase shift with frequency.



5. Cost.

Low cost realizes high volume commercial microwave and radio frequency application.



Taconic TLF-35 High Frequency Printed Circuit Board TLF-35 RF PCB 1



Typical applications are shown as follows.

1. Antenna

2. Power amplifiers (TD-SCDMA, WCDMAS, LTE, WLAN etc.)

3. LNA, Repeater PA

4. Passive RF components (Filters, Couplers etc.)



PCB Capability (TLF-35)

PCB Material: Organic-ceramic Laminates
Designation: TLF-35
Dielectric constant 3.50 ±0.05
Layer count: 1 Layer, 2 Layer, 4 Layer.
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.8mm, 1.6mm
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.
　 　



We’re able to supply TLF-35 high frequency PCB with 1oz and 2oz copper, 0.8mm and 1.6mm thick, maximum panel size 400 X 500mm, with surface finish bare copper, HASL, ENIG, immersion tin etc.



Bicheng specializes in providing you with prototype, small batches and mass production service. If you have any questions, please feel free to contact us.

Thank you for your reading.



Appendix: Typical Value of TLF-35

Property Test Method Units Value Units Value
Dielectric Constant at 1.9GHz IPC-TM 650 2.5.5.5.1 Mod   3.50±0.05   3.50±0.05
Dissipation Factor at 1.9GHz IPC-TM 650 2.5.5.5.1 Mod   0.0016   0.0016
Dissipation Factor at 10GHz IPC-TM 650 2.5.5.5.1 Mod   0.0022   0.0022
Water absorption IPC-TM 650 2.6.2.1 % 0.03 % 0.03
Peel Strength(1oz copper) IPC-TM 650 2.4.8 Lbs./linear inch 10 M/mm 1.8
Volume Resistivity IPC-TM 650 2.5.17.1 Mohm.cm 2.0 x 109 Mohm.cm 2.0 x 109
Surface Resistivity IPC-TM 650 2.5.17.1 Mohm 3.0 x 108 Mohm 3.0 x 108
Flexural Strength Lengthwise IPC-TM 650 2.4.4 psi 13,000 M/mm2 90
Flexural Strength Crosswise IPC-TM 650 2.4.4 psi 13,000 M/mm2 90
Thermal Conductivity IPC-TM 650 2.4.50 W/m/K 0.37 W/m/K 0.37
x-y CTE(50-150℃) IPC-TM 650 2.4.41 ppm/℃ 9-12 ppm/℃ 9-12
z CTE(50-150℃) IPC-TM 650 2.4.41 ppm/℃ 80 ppm/℃ 80
Flammability UL-94   V-0   V-0
