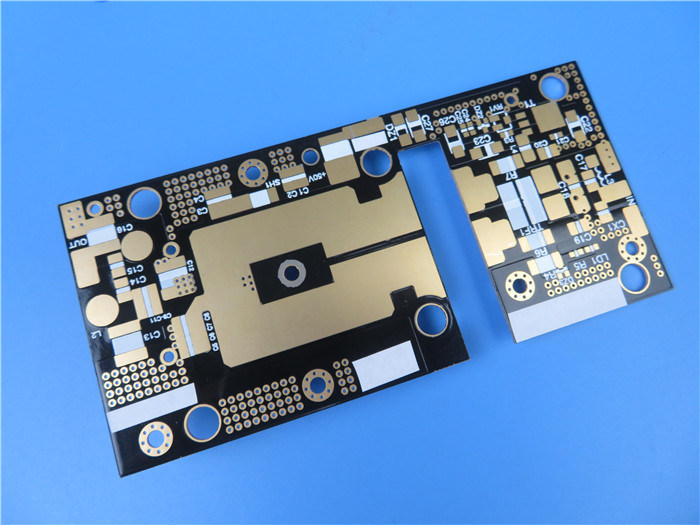

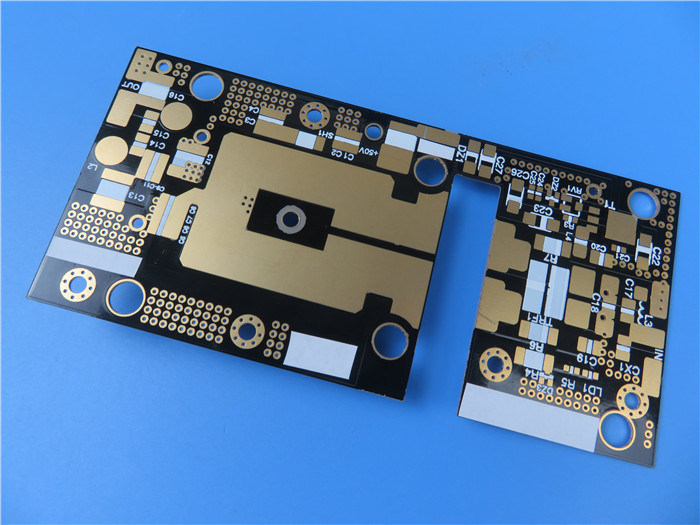

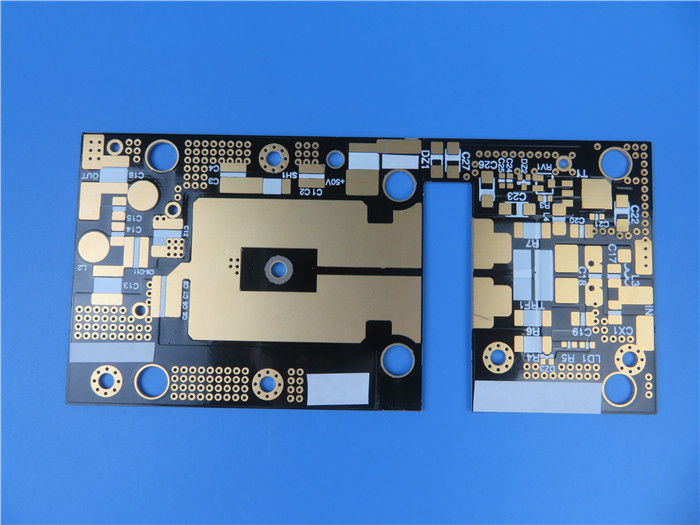

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.

  • Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.
  • Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.
  • Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.
  • Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.
Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-0167-V6.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD2.99-7.99 Per Piece
Packaging Details: Vacuum
Delivery Time: 5-6 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Glass Epoxy: RF-60TC Final Height Of PCB: 0.8 Mm ±0.1mm
Final Foil External:: 1.0 Oz Surface Finish: Immersion Gold
Solder Mask Color:: Black Colour Of Component Legend: White
TEST: 100% Electrical Test Prior Shipment

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers.

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Briefs

This is a type of thermal conductivity high frequency PCB made on Taconic’s RF-60TC, which is designed to provide lower operating temperature in high power applications, better gain and efficiency by improved dielectric heat dissipation and exceptionally lower dielectric losses. ( details for RF PCB Built on 6.15 DK RF-60TC 10mil, 20mil, 30mil and 60mil Coating with Immersion Gold, Tin, HASL and OSP for Miniaturized Antenna)



This circuit board is dual layers with finished 1oz copper. Solder mask and silkscreen overlay are on top layer. On the bottom layer is fully copper covered with immersion gold as the shield function. It’s 0.8mm thick and 50 boards are vacuum packed for shipment.



Other PCB material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, TLF-35, RF-60A etc.

AD450, AD600, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB



PCB Services

PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service



CAPABILITY

2500-3000 types each month.



SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.

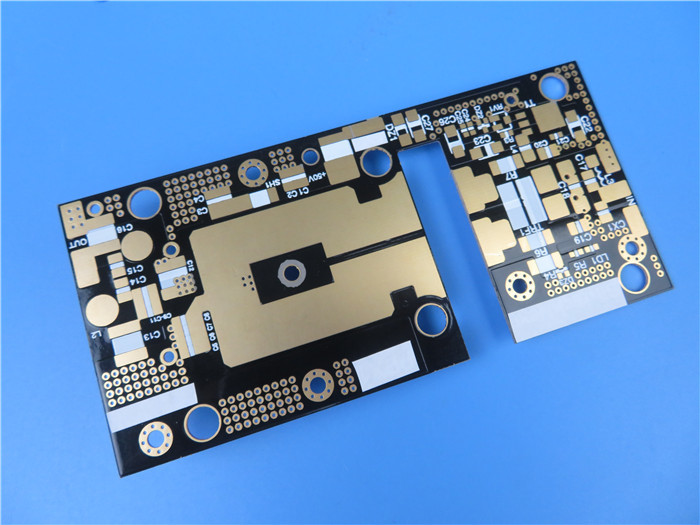

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers. 0



PCB Data Sheet

PCB SIZE 122 x 67mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
RF-60TC 0.762mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 7.0 mil / 6.0 mil
Minimum / Maximum Holes: 0.4 mm / 0.4 mm
Number of Different Holes: 1
Number of Drill Holes: 6
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RF-60TC 0.762mm
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold, 20%
Solder Mask Apply To: Top Layer
Solder Mask Color: Black
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Applications:

High power amplifier

Miniaturized antennas (GPS / PATCH / RFID Reader)

Filters, couplers, dividers

Satellites

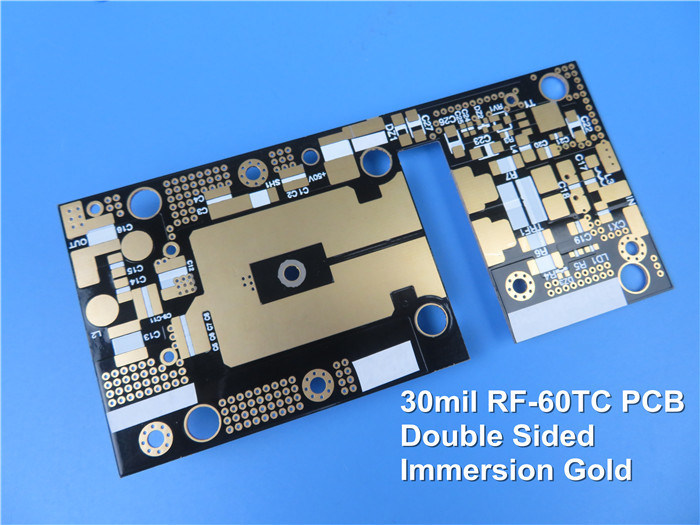

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers. 1

Double Sided RF PCB Built on 30mil RF-60TC with Black Solder Mask Coating Immersion Gold for High Power Amplifiers. 2
