Structure of FPC
According to the number of layers of conductive copper foil, FPC can be divided into single layer circuit, double layer circuit, multi-layer circuit, double sided and so on.
Single-layer structure: the flexible circuit of this structure is the simplest structure of the flexible PCB. Usually the base material (dielectric substrates) + transparent rubber(adhesive) + copper foil is a set of purchased raw materials(semi-manufactures), the protective film and transparent glue are another kind of bought raw material. First, copper foil must be etched to obtain the required circuit, and the protective film should be drilled to reveal the corresponding pad. After cleaning, the two are combined by rolling. Then the exposed part of the pad electroplated gold or tin to protect. In this way, the big panel board will be ready. Generally also it’s stamped into the corresponding shape of the small circuit board. There is also no protective film directly on the copper foil, but printed resistance soldering coating, so that the cost will be lower, but the mechanical strength of the circuit board will become worse. Unless the strength requirement is not high and the price needs to be as low as possible, it is best to apply the protective film method.
Double layer structure: when the circuit is too complex to be wired, or copper foil is needed to shield the ground, it is necessary to choose a double layer or even a multilayer. The most typical difference between a multilayer and a single plate is the addition of a perforated structure to connect the layers of copper foil. The first process of transparent rubber + base material + copper foil is to make holes. Drill holes in the base material and copper foil first, clean and then plated with a certain thickness of copper. The subsequent fabrication process is almost the same as the single-layer circuit.
Double sided structure: both sides of the double sided FPC have pads, mainly used to connect other circuit boards. Although it and monolayer structure is similar, but the manufacturing process is very different. Its raw material is copper foil, protective film and transparent glue. The protective film should be drilled according to the position of the pad first, then the copper foil should be affixed, the pad and track lines should be etched and then the protective film of another drilled hole should be affixed.

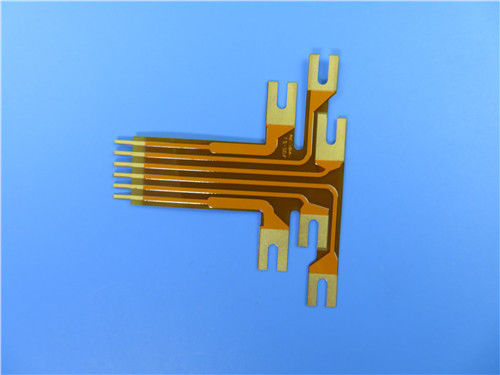

FPC Case: 2oz Flexible PCB FPC Built on Polyimide with Gold Plating
(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)
This is a type of flexible printed circuit for the application of Power Electronics. It’s a single layer FPC at 0.25mm thick with 2oz copper. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.
Parameter and data sheet
|Size of Flexible PCB ||61.61 X 70.37mm |
|Number of Layers ||1 |
|Board Type ||Flexible PCB |
|Board Thickness ||0.25mm |
|Board Material ||Polymide 50µm |
|Board Material Supplier ||ITEQ |
|Tg Value of Board Material ||60℃ |
|PTH Cu thickness ||N/A |
|Inner Iayer Cu thicknes ||N/A |
|Surface Cu thickness ||70 µm (2 oz) |
| || |
|Coverlay Colour ||Yellow |
|Number of Coverlay ||2 |
|Thickness of Coverlay ||25 µm |
|Stiffener Material ||no |
|Stiffener Thickness ||N/A |
| || |
|Type of Silkscreen Ink ||N/A |
|Supplier of Silkscreen ||N/A |
|Color of Silkscreen ||N/A |
|Number of Silkscreen ||N/A |
|Peeling test of Coverlay ||No peelable |
|Legend Adhesion ||3M 90℃ No peeling after Min. 3 times test |
|Surface Finish ||Immersion Gold |
|Thickness of Nickle/Gold ||Au: 0.03µm(Min.); Ni 2-4µm |
|RoHS Required ||Yes |
|Famability ||94-V0 |
|Thermal Shock Test ||Pass, -25℃±125℃, 1000 cycles. |
|Thermal Stress ||Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
|Function ||100% Pass electrical test |
|Workmanship ||Compliance with IPC-A-600H & IPC-6013C Class 2 |
Features and benefits
Reducing the volume
Consistency of assembly
Controllability of electrical parameter design
The end can be whole soldered
Continuity of processing
Focus on low to medium volume production
DDU Door to door shipment with competitive shipping cost.
Telephone receiver / earphone FPC, consumer game consoles, Tablet PC capacitive screen soft board
