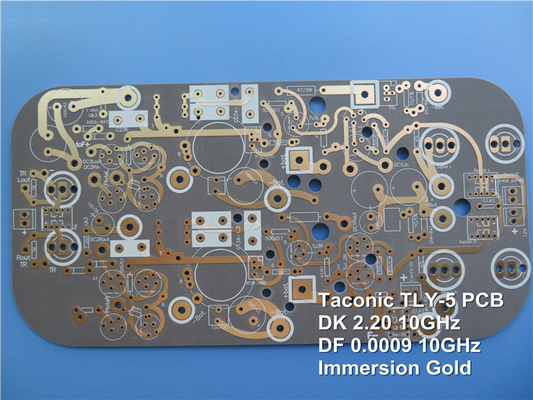

Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB

Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB

  • Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB
  • Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB
  • Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB
Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB
Product Details:
Place of Origin: China
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-xxxx-V1.32
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 9.99-99.99
Packaging Details: Vacuum
Delivery Time: 10 working days
Payment Terms: T/T, Paypal
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: 1 Layer, 2 Layer, 4 Layer. Glass Epoxy: TLY-5
Final Height Of PCB: 0.2mm, 0.3mm, 0.6mm, 0.8mm, 1.6mm Final Foil External: 0.5oz, 1oz, 2oz
Surface Finish: Bare Copper, HASL, ENIG, Immersion Tin Etc. Solder Mask Color: Green, White, Black Etc.
Colour Of Component Legend: Green, White, Black Etc. Test: 100% Electrical Test Prior Shipment

Hello Everyone,

Today, we're talking about high frequency PCB built on TLY material.



TLY laminates are manufactured with very lightweight woven fiberglass, which are from Taconic Company. They are more dimensionally stable than chopped fiber reinforced PTFE composites. Since they are more mechanically stable, it is suitable for high volume manufacturing.



The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies.



Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB 0



We benefit from its following advantages:

1. Dimensionally stable:

High volume fabrication becomes possible.

2. Lowest DF

In the low dielectric constant range, the dissipation factor is approximately 0.0009 at 10 GHz.

3. Low moisture absorption

It can work in severe environment.

4. High copper peel strength

It’s high up to 2.32, dimensionally stable.

5. Uniform and consistent DK

For most thicknesses, the dielectric constant can be specified anywhere within this range with a tolerance of +/-0.02

Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB 1



Typical applications include:

Automotive radar

Cellular communications

Satellite communications

Power amplifiers, Filters, couplers

LNBs, LNAs, LNCs

Aerospace, avionics

Phased array antennas



There’re 6 members in TLY family. We have stock for TLY-5. Others are purchased according to clients’ requirement.



Our PCB Capability (TLY Series)

PCB Material: Lightweight Woven Fiberglass
TLY Family (Dielectric constant ±0.02) TLY-5A (DK=2.17)
TLY-5A-L (DK=2.17)
TLY-5 (DK=2.20)
TLY-5-L (DK=2.20)
TLY-3 (DK=2.33)
TLY-3FF (DK=2.33)
Layer count: 1 Layer, 2 Layer, 4 Layer.
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.2mm, 0.3mm, 0.6mm,
0.8mm, 1.6mm
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.




Bicheng specializes in providing you with prototype, small batches and mass production service. If you have any questions, please feel free to contact us.

Thank you for your reading.



Taconic TLY-5 High Frequency Printed Circuit Board TLY-5 RF PCB 2



Appendix: Typical Value of TLY-5

Property Test Method Unit Value Unit Value
DK at 10 GHz IPC-650 2.5.5.5   2.2   2.2
Df at 10 GHz IPC-650 2.5.5.5   0.0009   0.0009
Moisture Absorption IPC-650 2.6.2.1 % 0.02 % 0.02
Dielectric Breakdown IPC-650 2.5.6 kV >45 kV >45
Dielectric Strength ASTM D 149 V/mil 2,693 V/mil 106,023
Volume Resistivity IPC-650 2.5.17.1(after elevated temp.) Mohms/cm 1010 Mohms/cm 1010
Volume Resistivity IPC-650 2.5.17.1(after humidity) Mohms/cm 1010 Mohms/cm 109
Surface Resistivity IPC-650 2.5.17.1(after elevated temp.) Mohms 108 Mohms 108
Surface Resistivity IPC-650 2.5.17.1(after humidity) Mohms 108 Mohms 108
Flex Strength(MD) IPC-650 2.4.4 psi 14,057 N/mm2 96.91
Flex Strength(CD) IPC-650 2.4.4 psi 12,955 N/mm2 89.32
Peel Stength(½ oz.ed copper) IPC-650 2.4.8 Ibs./inch 11 N/mm 1.96
Peel Stength(1 oz.CL1 copper) IPC-650 2.4.8 Ibs./inch 16 N/mm 2.86
Peel Stength(1 oz..CV1 copper) IPC-650 2.4.8 Ibs./inch 17 N/mm 3.04
Peel Stength IPC-650 2.4.8(after elevated temp.) Ibs./inch 13 N/mm 2.32
Young's Modulus(MD) ASTM D 3039/IPC-650 2.4.19 psi 1.4 x 106 N/mm2 9.65 x 103
Poisson's Ratio(MD) ASTM D 3039/IPC-650 2.4.19   0.21   0.21
Thermal Conductivity ASTM F 433 W/M*K 0.22 W/M*K 0.22
Dimensional Stability(MD,10mil) IPC-650 2.4.39(avg.after bake&thermal stress) mils/inch -0.038   -0.038
Dimensional Stability(CD,10mil) IPC-650 2.4.39(avg.after bake&thermal stress) mils/inch -0.031   -0.031
Density(Specific Gravity) ASTM D 792 g/cm3 2.19 g/cm3 2.19
CTE(X axis)(25-260) ASTM D 3386(TMA) ppm/ 26 ppm/ 26
CTE(Y axis)(25-260) ASTM D 3386(TMA) ppm/ 15 ppm/ 15
CTE(Z axis)(25-260) ASTM D 3386(TMA) ppm/ 217 ppm/ 217
NASA Outgassing(% TML)     0.01   0.01
NASA Outgassing(% CVCM)     0.01   0.01
NASA Outgassing(% WVR)     0.00   0.00
UL-94 Flammability Rating UL-94   V-0   V-0
