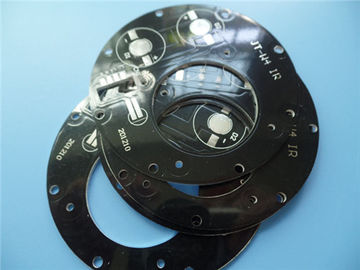

Aluminum PCB RoHS For Power Module
Product Details:
Place of Origin: China
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0120-V1.20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD40~50 per piece
Packaging Details: Vacuum
Delivery Time: 5-6 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: Single Sided PCB Aluminum Core:: 1W / MK Dielectric Material 75um
Final Foil External:: 1oz Final Height Of PCB:: 1.6mm ±0.16
Surface Finish: Hot Air Soldering Leveling(HASL),lead Free, Sn>=2.54µm Solder Mask Color:: Black, KSM-S6189BK31
Colour Of Component Legend: White, IJR-4000 MW300 TEST: 100% Electrical Test Prior Shipment

Product profile



1.1 General description



This is a type of aluminum PCB for the application of power module. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

Class 2 using supplied Gerber data. 30 boards are packed separately.



1.2 Features and benifits



A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Strict WIP inspection and monitoring as well as working instruction,
H. High voltage test, Impedance control test, micro-section, solder-ability test,
I. Eligible products rate of first production: >95%
J. UL recognized and RoHS Directive-compliant
K. High technology
L. Customer complaint rate: <1%

1.3 Application



Fluorescent lamp, CPU board, Floppy disk driver, Communication electronic equipment,

Power supply equipment



1.4 Parameter and data sheet



PCB SIZE 96 x 96mm=1PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 70um(2oz)
1W/MK dielectric material 75um
Aluminum 6061 1.5mm
TECHNOLOGY
Minimum Trace and Space: 12mil/20mil
Minimum / Maximum Holes: 3mm / 5.0mm
Number of Different Holes: 12
Number of Drill Holes: 3
Number of Milled Slots: 2
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 1W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: Black, KSM-S6189BK31
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



The Variety of Aluminum PCBs

Aluminum PCB RoHS For Power Module 0



PCB Pattern plating



Aluminum PCB RoHS For Power Module 1
