Detailed Product Description
Thermal Conductivity: 1W/MK Dielectric Material, MCPCB Final Height Of PCB: 1.6mm ±0.16
Final Foil External: 1 Oz Surface Finish: Electroless Nickel Over Immersion Gold (ENIG)
Solder Mask Color: White,PSR400 WT02 Colour Of Component Legend: No Silkscreen Required
TEST: 100% Electrical Test Prior Shipment

Product profile



1.1 General description

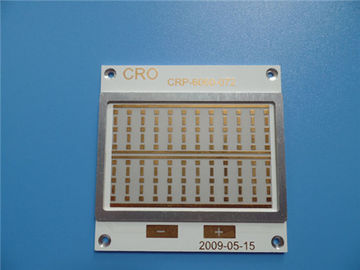

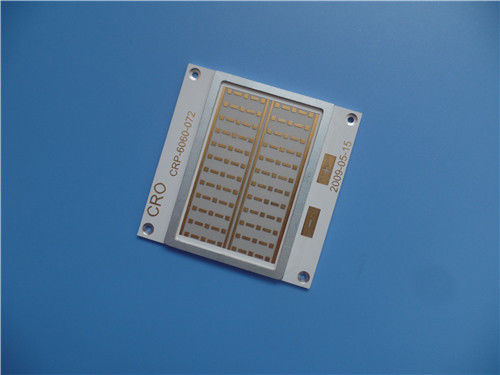

This is a type of Aluminum PCB for the application of motor driver. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. It's built with composite

structure. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's

fabricated per IPC 6012 Class 2 using supplied Gerber data. 20 boards are packed shipment.



1.2 Features and benifits



A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and prolongs

    the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

     materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. High voltage test, Impedance control test, micro-section, solder-ability test,
H. Thermal stress test, reliability test, insulation resistance test and ionic contamination test,
I.  Eligible products rate of first production: >95%
J. Small quantity order is accepted
K. Delivery on time: >98%
L. Customer complaint rate: <1%

1.3 Application



Preamplifier, Office automation equipment, CPU board, Floppy disk driver, Downlight



1.4 Parameter and data sheet

PCB SIZE 60 x 60mm=1PCS
BOARD TYPE Single sided aluminum PCB
Number of Layers one layer
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material
Aluminum 5052
TECHNOLOGY
Minimum Trace and Space: 16mil/17mil
Minimum / Maximum Holes: 3.3/7.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, aluminum frame conbined with aluminum PCB
MARKING
Side of Component Legend no silkscreen required
Colour of Component Legend no silkscreen required
Manufacturer Name or Logo: no silkscreen required
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment

TYPE OF ARTWORK TO BE SUPPLIED

email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
