Single Sided Aluminum PCB 1.6mm With Hot Air Soldering
Product Details:
Place of Origin: China
Brand Name: Bicheng Enterprise Limited
Certification: UL
Model Number: BIC-0996-V9.96
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20~30
Packaging Details: Vacuum
Delivery Time: 5-6 working days
Payment Terms: T/T, Paypal
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Aluminum Core: 1W / MK Dielectric Material 75um Final Height Of PCB: 1.6mm ±0.16
Final Foil External: 1 Oz Surface Finish: HASL Lead Free
Solder Mask Color: White, Taiyo PSR400 WT02 Colour Of Component Legend: Black
TEST: 100% Electrical Test Prior Shipment

Product profile





1.1 General description


This is a type of aluminum PCB for the application of Led Lighting. It's a single

layer MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The

aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's

fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 boards

are packed separately.




1.2 Features and benifits


A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Products and Manufacturing are certified by authorized organizations.
H. PCB manufacturing strictly as per required specifications.
I. Engineering design prevents problems from occurring in pre production.
J. RoHS materials
K. Focus on low to medium volume production
L. Customer complaint rate: <1%





1.3 Application


Automobile rear lighting, Constant voltage control, Automobile, Aluminum PCB for Audio equipment




1.4 Parameter and data sheet

PCB SIZE 90 x 90 mm (diameter 90 mm)
BOARD TYPE Metal core PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material 75um
Aluminum 1060 1.5mm
TECHNOLOGY
Minimum Trace and Space: 10mil/10mil
Minimum / Maximum Holes: 2.0 mm
Number of Different Holes: 1
Number of Drill Holes: 7
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 1W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish HASL Lead free
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White, Taiyo PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo:

Marked on the board in a conductor and

leged FREE AREA

VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

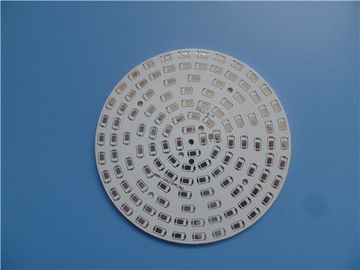

Single Sided Aluminum PCB 1.6mm With Hot Air Soldering 0]

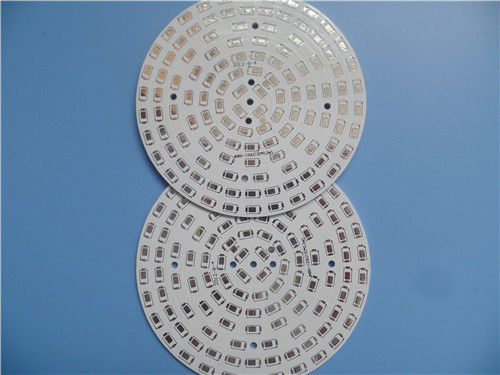

Single Sided Aluminum PCB 1.6mm With Hot Air Soldering 1
