4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4

China 4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4 Supplier
4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4 Supplier 4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4 Supplier

Large Image :  4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4

Product Details:

Place of Origin: China
Brand Name: Bicheng Enterprise
Certification: UL
Model Number: BIC-123-V1.23

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 2.99-9.99 PER PIECE
Packaging Details: Vacuum
Delivery Time: 10 working days
Payment Terms: T/T, Western Union
Supply Ability: 45000 pieces per month
Contact Now
Detailed Product Description
Number Of Layers: 4 Layer, 6 Layer, Multilayer, Hybrid Type (Mixed) Glass Epoxy:: RO4350B Rogers
Final Foil: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) Final Height Of PCB:: 1.0-5.0mm
Surface Finish: Bare Copper, HASL, ENIG, Silver, OSP,etc. Solder Mask Color:: Green, Black, Blue, Yellow, Red Etc.
Colour Of Component Legend: Green, Black, Blue, Yellow, Red Etc. Test: 100% Electrical Test Prior Shipment

Hi Everyone,

Today, I'm going to talk about a type of high frequency PCB made on 12mil RO4003C pressed with FR-4.



This board is designed as a 4-layer structure. 4-layer PCB is relatively simple and inexpensive, which is helpful to open up a new market.



Viewing from stack up, we can see

4 Layer PCB Board Bulit On Rogers 12mil RO4003C and FR-4



The first layer to the second layer and 4th layer to 3rd layer are 12mil core of RO4003C, the core has fixed thickness which is very important to the electrical length of RF lines on the circuit board, and the rest are FR-4 materials. Copper weight on inner layer and outer layer is 1 ounce.



The surface finish of this board is HASL. Other finish like Immersion gold, immersion tin, immersion silver and OSP etc. are available for your option.



At present, the mature mixed pressing materials are as follows:

RO4350B + FR4;

RO4003C + FR4;

F4B + FR4;

Duroid/RT5880 + RO4350B

Duroid/RT5880 + FR4

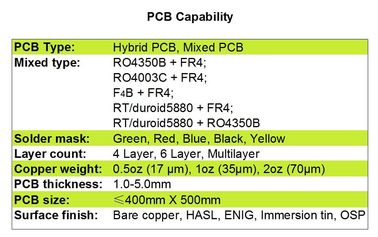

PCB Capability
PCB Type: Hybrid PCB, Mixed PCB
Mixed type: RO4350B + FR4;
  RO4003C + FR4;
  F4B + FR4;
  Duroid/RT5880 + RO4350B
  Duroid/RT5880 + FR4
Solder mask: Green, Red, Blue, Black, Yellow
Layer count: 4 Layer, 6 Layer, Multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 1.0-5.0mm
PCB size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin, OSP




At the same time, we are able to supply blind via board, buried via board and HDI board. All the PCB's of our company will go through AOI test, open and short circuit test, solderability test and 288 ℃ thermal stress test to ensure high quality PCB shipped to your hands.



If you're interested in, please feel free to contact us. Thank you for your reading.
