RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB

RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB

  • RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB
  • RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB
RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB
Product Details:
Place of Origin: CHINA
Brand Name: Bicheng Technologies Limited
Certification: UL
Model Number: BIC-185-V3.38
Payment & Shipping Terms:
Minimum Order Quantity: 1 PIECE
Price: USD 9.99-99.99
Packaging Details: VACUUM
Delivery Time: 10 WORKING DAY
Payment Terms: T/T,Paypal
Supply Ability: 50000 PIECE PER MONTH
Contact Now
Detailed Product Description
Board Material: RO4533 Board Thickness: 0.8mm
Surface/Inner Layer Cu Thickness: 1oz, Surface Finish: Immersion Gold
Coverlay Colour: Green Color Of Silkscreen: White
Function: 100% Pass Electrical Test Number Of Layers: 2

Property RO4533 Direction Units Condition Test Method
Dielectric Constant, er Process 3.3 ± 0.08 Z - 10 GHz/23 2.5 GHz IPC-TM-650,2.5.5.5
Dissipation Factor 0.002 Z - 2.5 GHz/23 IPC-TM-650, 2.5.5.5
0.0025 10 GHz/23
PIM (Typical) -157 - dBc Reflected 43 dBm swept tones Summitek 1900b PIM Analyzer
Dielectric Strength >500 Z V/mil 0.51 mm IPC-TM-650, 2.5.6.2
Dimensional Stability <0.2 X,Y mm/m (mils/inch) after etch IPC-TM-650, 2.4.39A
Coefficient of Thermal Expansion 13 X ppm/ -55 to 288 IPC-TM-650, 2.4.41
11 Y
37 Z
Thermal Conductivity 0.6 - W/(m.K) 80 ASTM C518
Moisture Absorption 0.02 - % D48/50 IPC-TM-650, 2.6.2.1 ASTM D570
Tg >280 - TMA A IPC-TM-650, 2.4.24.3
Density 1.8 - gm/cm3 - ASTM D792
Copper Peel Strength 6.9 (1.2) - lbs/in (N/mm) 1 oz. EDC post solder float IPC-TM-650, 2.4.8
Flammability NON FR - - - UL 94
Lead-Free Process Compatible Yes - - - -

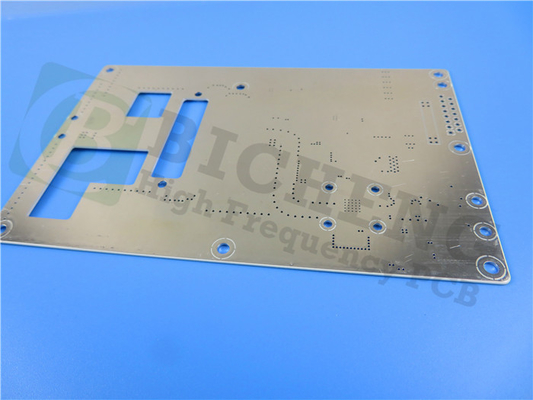

RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

RO4533 High Frequency Laminates, ceramic-filled, glass-reinforced hydrocarbon based material, are cost/performance materials from Rogers Corporation, specifically engineered and manufactured to meet the specific demands of the antenna markets. It has a dielectric constant of 3.3 and a loss tangent (Df) of 0.0025 measured at 10 GHz. These values allow antenna designers to realize substantial gain values while minimizing signal loss. Thus, it provides excellent passive intermodulation response required for mobile infrastructure microstrip antenna applications.



It is an affordable alternative to more conventional PTFE antenna technologies, thus allowing our designers to optimize the price and performance of the antennas. The resin systems of RO4533 dielectric materials are designed to provide the necessary properties for ideal antenna performance. The coefficients of thermal expansion (CTEs) in both the X and Y directions are similar to that of copper. The good CTE match reduces stresses in the printed circuit board antenna.



RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB 0



Features and Benefits

1. Low Loss 0.0025 , Low Dk 3.3, low PIM response: Wide range of application use

2. Thermoset resin system: Compatible with standard PCB fabrication

3. Excellent dimensional stability: Greater yield on larger panels sizes

4. Uniform mechanical properties: Maintains mechanical form during handling

5. High thermal conductivity: Improved power handling



Typical Applications:

1. Cellular infrastructure base station antennas

2. WiMAX antenna networks



Our PCB Capability (RO4533)

PCB Capability (RO4533)
PCB Material: Ceramic-filled, Glass-reinforced Hydrocarbon
Designation: RO4533
Dielectric constant: 3.3
Dissipation Factor 0.0025 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm )
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



RO4533 Typical Values

Property RO4533 Direction Units Condition Test Method
Dielectric Constant, er Process 3.3 ± 0.08 Z - 10 GHz/23 2.5 GHz IPC-TM-650,2.5.5.5
Dissipation Factor 0.002 Z - 2.5 GHz/23 IPC-TM-650, 2.5.5.5
0.0025 10 GHz/23
PIM (Typical) -157 - dBc Reflected 43 dBm swept tones Summitek 1900b PIM Analyzer
Dielectric Strength >500 Z V/mil 0.51 mm IPC-TM-650, 2.5.6.2
Dimensional Stability <0.2 X,Y mm/m (mils/inch) after etch IPC-TM-650, 2.4.39A
Coefficient of Thermal Expansion 13 X ppm/ -55 to 288 IPC-TM-650, 2.4.41
11 Y
37 Z
Thermal Conductivity 0.6 - W/(m.K) 80 ASTM C518
Moisture Absorption 0.02 - % D48/50 IPC-TM-650, 2.6.2.1 ASTM D570
Tg >280 - TMA A IPC-TM-650, 2.4.24.3
Density 1.8 - gm/cm3 - ASTM D792
Copper Peel Strength 6.9 (1.2) - lbs/in (N/mm) 1 oz. EDC post solder float IPC-TM-650, 2.4.8
Flammability NON FR - - - UL 94
Lead-Free Process Compatible Yes - - - -



RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB 1



RO4533 High Frequency Printed Circuit Board Rogers 20mil 30mil 60mil Antenna RF PCB 2
